Power BI Architecture: Designing Scalable, Secure, and High-Performance Analytics Solutions

The data source layer represents the system-of-record foundation for Power BI analytics. It includes operational databases (ERP, CRM, finance systems), SaaS platforms (marketing, sales, HR tools), flat files (CSV, Excel, Parquet), REST and Graph APIs, and streaming sources for near–real-time analytics.

Architecturally, data sources can be on-premises, cloud-native, or a hybrid of both, with each having varying latency, security, and availability attributes. On-premises systems can also have extraction limits, maintenance windows, and gateway dependencies, whereas cloud data sources are often able to achieve a higher level of concurrency and elastic access. The capabilities of source systems to support data freshness, including transaction load tolerance, API throttling, and change-tracking support, are a limiting factor. Also, it is essential to ensure that refresh strategies are aligned with the performance and business SLAs of upstream systems.

The integration layer defines the way Power BI queries and receives data in source systems. Import mode is more performance-oriented, as it caches data in memory but creates overhead in terms of refresh and storage. DirectQuery allows real-time access, but makes performance dependent on the source system, making it more sensitive to latency and concurrency constraints.

Composite models combine both methods by storing high-value tables in cache and large or volatile data stored as query-driven. In the case of hybrid environments, on-premises data gateways are used to securely connect cloud Power BI services with local systems and bring in new factors of throughput, redundancy, and load balancing. This layer is one of the most crucial design choices because it has a direct impact on query latency, user concurrency, refresh cost, and infrastructure spend.

The semantic layer is the analytical core of Power BI, in which raw data is converted to trusted business meaning. Enterprise architectures prefer centralized datasets that reveal one managed semantic model in more than one report, whereas thin reports are concerned with visualization logic only. Properly structured star schemas enhance query performance, simplify the model, and provide predictable behavior of filters.

Business logic, measures, KPIs, and calculations are also defined in this layer using DAX, so it is necessary to have governance to prevent the fragmentation of metrics. Measures creation, naming conventions, and versioning make sure that the financial, operational, and executive measures are consistent across teams and applications.

The visualization layer provides information to the user in terms of reports, dashboards, Power BI applications, and embedded analytics. Architectural decisions here determine whether Power BI supports self-service exploration, governed enterprise reporting, or a hybrid of both. Self-service environments focus on flexibility and ad hoc analysis, whereas enterprise reporting focuses on certification, predictability of performance, and controlled distribution.

The consumption patterns among mobile users, executive stakeholders, and operational teams are all very different and need different refresh rates, interaction models, and visual complexity. Embedded analytics also brings Power BI insights outside of the system and adds more performance, security, and scalability factors.

The governance layer makes sure that Power BI is secure, compliant, and operationally sustainable as it is adopted. It consists of workspace design, environment separation (development, test, production), and deployment pipelines to promote content in a controlled way. Monitoring is used to observe the health of the dataset refresh, query performance, capacity utilization, and user activity, and auditing and usage analytics are used to give a view of access patterns and risk exposure.

Lifecycle management processes stipulate the versioning, certification, depreciation, and retirement processes of datasets, reports, and dashboards. Lack of solid governance and change control leads to technical debt, security vulnerabilities, and inconsistent reporting logic that compromises trust at scale in Power BI environments.

Scalable Power BI architecture should be able to support the growth in terms of users, data volumes, and refresh workloads without causing instability. With more and more people using the reports, it is necessary to decouple report consumers and dataset authors to minimize model redundancy and query interference.

Dataset scalability depends on controlling model size, refresh frequency, and query complexity. Refresh scalability requires staggered schedules, incremental refresh policies, and isolation of heavy processing to prevent system-wide performance degradation.

Scalable analytics is based on shared datasets, which centralize business logic and metrics into controlled semantic models. The same dataset can be used in multiple thin reports, which saves more memory, enhances the efficiency of caches, and imposes consistency across departments. This model enables the use of analytics to scale without depending on the complexity of the model and makes maintenance easier in the long term.

Capacity planning is a method that defines the manner in which compute and memory resources are distributed with the increase in workloads. Shared capacity is suitable for lightweight or exploratory use but causes contention when used with high concurrency.

Dedicated capacity offers predictable performance, increased refresh throughput, and workload isolation, and thus is appropriate in enterprise-scale deployments. Effective planning considers dataset size, refresh parallelism, peak usage windows, and background operations to avoid saturation.

The table below compares shared and dedicated capacity across key performance, scalability, and governance factors to guide capacity planning decisions.

Development, test, and production environments should be separated. It allows parallel development and maintains the stability of the production environment. Isolation of the workspace means that the experimental changes do not affect the end users, and deployment pipelines assist in organized promotion of datasets and reports. This architecture is scalable in that it supports controlled models and reports evolution as more teams are added and workloads increase.

A scalable Power BI architecture can withstand organizational expansion by imposing modelling controls, restricting uncontrolled self-service data sets, and constantly tracking capacity utilization. This ensures that increases in users, data volume, and reporting needs do not result in slower queries, failed refreshes, or unpredictable user experience.

The initial step in security architecture is the area of centralized identity integration, meaning that access to Power BI should be consistent with enterprise identity systems. Authentication controls provide similar access policies, conditional access, and user lifecycle integration. This ensures that security gaps are minimized as users enter, transfer, or exit the organization.

Row-level security is applied to enforce data-level security (limiting record visibility), and object-level security (limiting access to tables, columns, and measures). These controls applied at the dataset level guarantee uniformity in the enforcement of these controls across reports, dashboards, and embedded analytics, irrespective of the method of data consumption.

Security is effectively achieved by having a separation of permissions among datasets, workspaces, and apps. Dataset permissions can be used to restrict the people who are allowed to query or create reports, workspace roles can be used to regulate content creation and editing, and app permissions can be used to regulate the distribution limits. The alignment of these layers helps prevent overexposure of sensitive data and allows least-privilege access.

Architectural decisions must account for where data is stored, processed, and refreshed to meet regulatory and internal governance requirements. Location of datasets, location of the gateway, export controls, and audit logging are all elements of compliance and risk management, especially in regulated industries.

Flexibility and control are necessary to secure self-service analytics. Authenticated data, limited export options, tracked sharing behavior, and explicit ownership models enable users to explore data on their own and guard sensitive data, as well as ensure compliance.

Import and DirectQuery modes are very different in terms of performance characteristics. Import mode provides quick response in queries using in-memory storage, but uses refresh cycles. DirectQuery allows almost real-time access and makes performance reliant on the source system, raising sensitivity to latency, indexing, and concurrency factors.

The table below compares Import mode and DirectQuery across key architectural and performance factors to help determine the most suitable option for different analytics workloads.

High-performance models use star schema, optimized relationship, low cardinality column, and efficient DAX calculations. Eliminating unused columns and simplifying the model structure improves query execution and cache reuse, enhancing the user experience.

Refresh efficiency is enhanced when historical data is filtered, partitions are used, and refresh frequency is in line with business requirements. Smaller datasets have a lower refresh rate and less memory usage, and can be served to more users without scaling up capacity demand.

The common query patterns are served faster through caching strategies and aggregation tables, which minimize the data scanned during a run. Incremental refresh processes only new or modified partitions, reducing compute load while maintaining required freshness levels. This significantly reduces processing time.

To maintain performance, it is necessary to continuously monitor the time of queries, refresh success rates, memory usage, and simultaneous activity. Bottlenecks can be proactively identified to optimize in a timely manner to avoid poor performance as the adoption and data volumes increase.

This architecture is designed to be flexible and fast so that business users can create and modify reports without any assistance. It is based on common or loosely managed datasets, and it is focused on convenience, and it fits the teams that are highly analytically mature and have low central IT engagement.

This model is constructed based on centrally controlled datasets and reports and ensures high levels of governance, consistency, and performance control. It is typically applied to financial, regulatory, and executive reporting in which accuracy, auditability, and stability are paramount.

This architecture is an integration of centralized certified semantic models and self-service report generation. Thin reports are constructed by business users on top of controlled datasets and allow them to be agile without affecting metric consistency, security, or performance.

Basically, this model is made to be operational and time sensitive with the aim of extracting current data through the use of DirectQuery or streaming datasets. Optimization of source systems and close management of concurrency and query patterns are very important to performance.

Used by software vendors and digital platforms, this architecture embeds Power BI reports and dashboards into external applications. It needs high isolation, capacity planning which is scalable, and high security boundaries to facilitate multi-tenant usage.

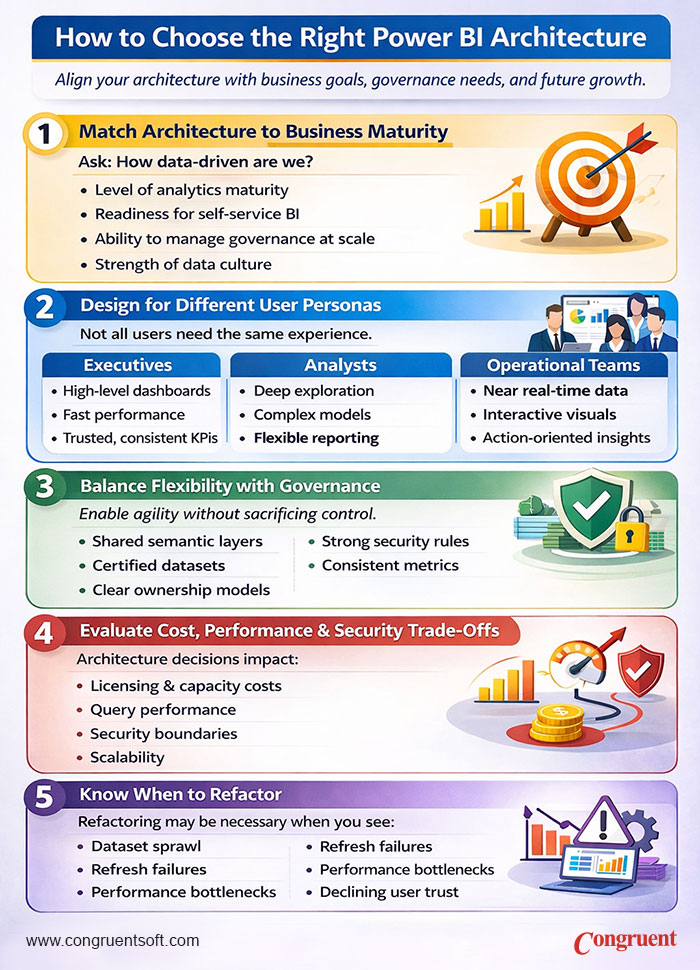

The extent of data-drivenness of the organization, the degree of self-service preparedness, and the scale at which analytics can be controlled should be reflected in architecture.

Freshness, interactivity, and complexity have different expectations among the various users. These personas have to be supported by architecture with no overloading of models or capacities.

The appropriate design allows business agility and control over data quality, security, and consistency of metrics using shared semantic layers and explicit ownership.

The architectural decisions have an impact on the licensing, capacity costs, query performance, and risk exposure. Trade-offs need to be considered as a whole and not separately.

Refactoring is required when dataset sprawl, inconsistent metrics, refresh failures, or performance bottlenecks start to restrict adoption and confidence.
