Wells Fargo API Integration with Business Central for ACH & Wire Payment Automation

  1. Home
  2. Blog
  3. Wells Fargo Payment Process Integration with Business Central

Modern finance teams need real-time payment processing and automation to keep up with business demands. By integrating Microsoft Dynamics 365 Business Central with Wells Fargo APIs, organizations can automate ACH and wire payments, improve payment visibility, and enable real-time payment status tracking within their ERP system.

In this setup, initiate payments directly from the Business Central payment journal using secure API-based communication, eliminating manual banking processes, and reducing operational risk. Manage payment processing updates from Wells Fargo to Business Central via scheduled job queues for wire transactions and webhooks for ACH payments, ensuring seamless synchronization.

As a result, finance teams benefit from faster reconciliation, improved accuracy, and end-to-end payment lifecycle visibility. For organizations looking to implement or scale such integrations, leveraging our Business Central consulting services ensures a secure, scalable, and production-ready solution.

This blog explores how this API-driven integration simplifies payment processing, enhances transparency, and enables efficient financial operations.

1. Why is Integration Connection Setup Critical for ERP-Bank Communication?

Wells Fargo API connection setup materializes the environment setup of Wells Fargo API in business central. This is the place where third party environment and business central environment connections can be evaluated and initialized. Wells Fargo API connection setup establishes a secure REST API integration between Business Central and Wells Fargo, enabling reliable and scalable financial data exchange. This includes environment initialization, secure authentication handling (such as OAuth), and validation of ERP-to-bank connectivity.

A screenshot of the API Connections page in Business Central, showing multiple integration endpoints including WellsFargo (Production), WF-Production-2025, and WF-Sandbox.

Wells Fargo offers various API services where we can successfully use APIs to initiate

  1. Wire Payments
  2. ACH payments
  3. Get Wire Payment status
  4. Webhooks for ACH Payment Failure notifications

From an ERP system based on client’s requirement. Usually, a custom process screen gives more meaningful insights on the setup which enhances the data flow between the systems.

A screenshot of the API Connections page in Business Central, displaying connection tiles for various environments.

2. How does Payment Journal Automation Streamline Payment Processing?

With this Business Central payment journal automation, users can initiate ACH and wire payments directly from the ERP using Wells Fargo APIs. This eliminates the need for manual banking portals or file uploads and enables ERP-driven payment execution with real-time visibility.

This process ensures that payment details are securely transmitted to Wells Fargo before the payment is posted in Business Central, giving users better control and visibility during the payment lifecycle.

3. What are the Steps to Send ACH and Wire Payments from Business Central?

Step 1: Submit the Payment to Wells Fargo

Once a payment is approved in Business Central and configured as ACH or wire, users can initiate the transaction directly from the payment journal. This enables automated payment processing within the ERP, ensuring secure and seamless transmission of payment data to Wells Fargo.

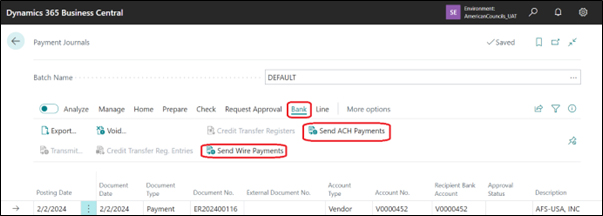

A screenshot of the Payment Journals page in Business Central for the 'DEFAULT' batch. The navigation menu is set to the Bank tab, with red boxes highlighting the functional actions: Send ACH Payments and Send Wire Payments.

Step 2: Confirmation of Successful Submission

After the payment information is sent, the user receives a confirmation message indicating that the details were successfully transmitted to the bank. This confirmation assures the user that the payment is now in Wells Fargo’s system and ready for further processing.

Step 3: Once the Journal line is posted Failure payment can be monitored in Ledger entries screen For Wire payments and email will be received for the AP team via webhooks

A screenshot detailing the API Services for the WF-PRODUCTION-2025 connection.

4. How can you Perform a Wire Payment Status Check in Business Central?

This process enables real-time payment tracking and automated payment status synchronization between Wells Fargo and Business Central. When you post a transaction from journal, it moves to bank account ledger entries. Posted Wire payment transactions status can be checked from Bank account ledger entries.

Open Bank Account Ledger Entries apply necessary filters as shown in the below screenshot,

A screenshot of the Bank Account Ledger Entries in Business Central, filtered by Payment Type 'WIRE' and Bank Status 'Posted'.

Note: If the transaction status is marked as posted it states that the transaction is successfully posted and sent to the payee. If the transaction is marked as Pending for more than few days, it states that the transaction is failed and we need to check with the bank for the reason for failure.

Technically, automation program runs to update the status of the transaction in bank account ledger entries for Wire Payments.

5. How are ACH Payment Failures Handled Using Webhooks?

ACH payment failures are managed using webhooks (event-driven architecture), enabling real-time notifications without the need for manual checks or polling mechanisms. For more details, user can check Wells Fargo ACH Failure Notifications in Business Central.

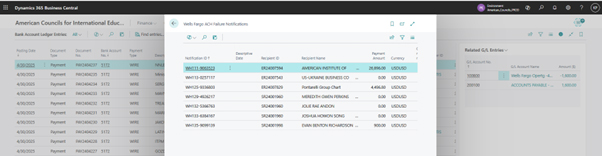

A screenshot showing a pop-up window titled Wells Fargo ACH Failure Notifications overlaid on the Bank Account Ledger Entries page.

A successful Wells Fargo–Business Central integration goes beyond basic API connectivity. It requires secure authentication, robust asynchronous processing, and well-defined bidirectional data flows.

By implementing a scalable, API-driven payment automation solution, organizations can streamline ACH and wire transactions, achieve real-time payment visibility, and reduce manual banking dependencies.

This approach not only improves operational efficiency but also ensures secure, auditable, and enterprise-grade financial data integration, making it a critical component of modern ERP financial automation strategies.
